GB6993-86 Mobile Phone Signal Booster 23dBm GSM DCS 3G 4G LTE 5 Bands

Shenzhen Sacon Telecom Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

GB6993-86 Mobile Phone Signal Booster 23dBm GSM DCS 3G 4G LTE 5 Bands

Brand Name : Sacontelecom

Model Number : SA-23-LGDWL

Certification : ISO9001, CE

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union, , Paypal

Supply Ability : 50000pcs per Month

Delivery Time : 3 Working Days After Received Payment

Packaging Details : Carton with PE Foam

Product Name : amplificador de señal móvil

Coverage : 800-1000(m2)

Frequency : GSM DCS 3G LTE 4G

Output Power : 23dBm

Gain : 70dB

Weight : 3kgs

Contact Now

Affordable 23dBm GSM DCS 3G 4G LTE 5 Bands Mobile Phone Signal Booster Factory Manufacturer

Descriptions of 5 bands cheap amplificatore di segnale mobile:

This muti-band cell phone booster has 2 colors, gold and sliver. It can boost 2G 3G 4G 5G signals. Such as B20 LTE800 GSM900 DCS1800

3G2100 and 4G2600, supports Europe, Southeast Asia, North-east Asia, Middle East and Africa, etc.

B28 LTE700 GSM900 DCS1800 3G2100 4G2600 signals, supports Taiwan, Saudi Arabia, Asia Pacific, Lartin America, Paraguay and etc.

B13 B12 B17 Lte700 GSM850 PCS1900 AWS1700 4G2600 signals, supports America, North America, South America and etc.

Features of 5G signal booster:

1. Support 5 bands cell phone signals, 2G 3G 4G 5G;

2. 23dBm power, 70dB gain, 800-1000m2 coverage;

3. 2 Colors, gold and sliver;

4. 3kgs weight;

5. OEM and ODM is available;

6. Fast shipment, 1 year warranty.

Specifications of mobile signal booster:

Model No
SA-23-LGDWL
Frequency
800/900/1800/2100/2600MHz
Frequency Range
Uplink 832-862/890-9151710-1785/1920-1980/2500-2570MHz
Downlink : 791-821/935-960/1805-1880/2110-2170/2620-2690MHz
Gain
Uplink 60±3dBi Downlink 65±3dBi
Export: Power
20dBm±3dBm
Power Supply
Input AC100V-240V 50/60Hz 1.5A
Output 12V 4.0A
Size
195*215*22mm
Weight
3kgs
Coverage Area
800-1000sqm
Pass Band Ripple
≤3dBi
I/O Impedance
50Ω
Connector
Type N female connector
Noise Figure
≤4dBi
Transmission Delay
≤0.5μs
Ambient Temperature
-10ºC~60ºC
Reliability
To the GB6993-86 standard
Electromagnetic Compatibility
To the ETS300 694-4 standard
Function
a) Power supply LED denote
b) Export power LED denote

Standard Package of cell phone signal booster:

AC90-264V, DC power supply adapter 1PCS

AC power cord (EU/US/UK/SA/China standard, etc) 1PCS

Installation kit 1PCS

User manual 1PCS


Recommended Accessories:

Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)

Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)

5D-FB coaxial cable with connecter (Cable length optional)

Application of network signal booster:

To expand signal coverage or fill signal blind area where signal is weak or unavailable.

Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.

GB6993-86 Mobile Phone Signal Booster 23dBm GSM DCS 3G 4G LTE 5 Bands


Product Tags:

GB6993-86 Mobile Phone Signal Booster



1000sqm Mobile Phone Signal Booster



GSM DCS cell phone signal boosters


China GB6993-86 Mobile Phone Signal Booster 23dBm GSM DCS 3G 4G LTE 5 Bands wholesale

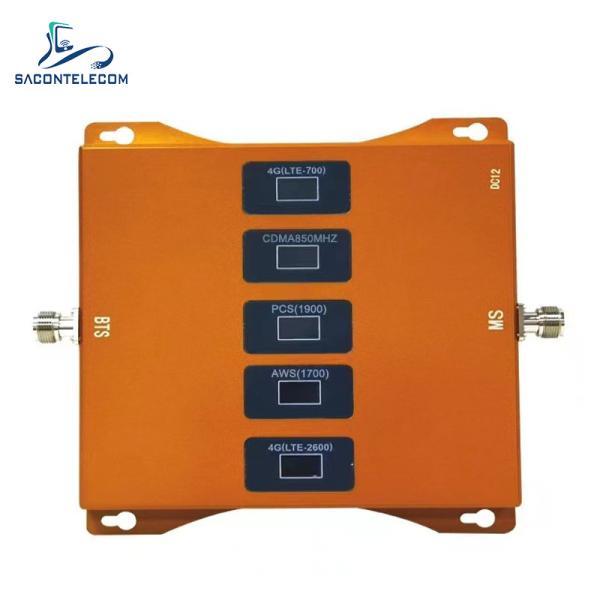

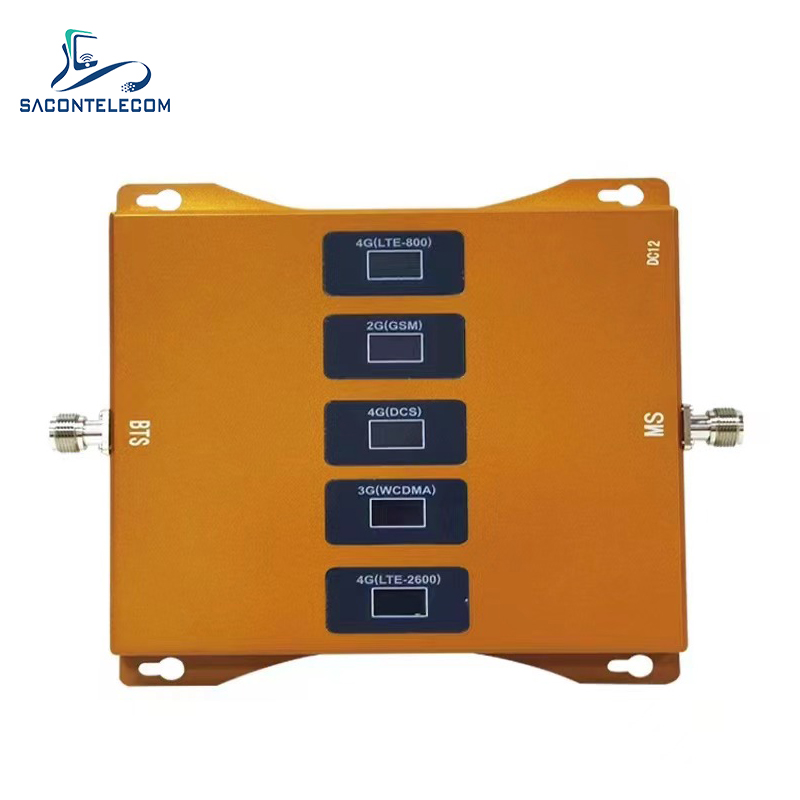

GB6993-86 Mobile Phone Signal Booster 23dBm GSM DCS 3G 4G LTE 5 Bands Images
